| एमओक्यू: | 1 set |
| कीमत: | USD457-487/Set |
| मानक पैकेजिंग: | Wooden box |
| वितरण अवधि: | 10-15 working days |
| भुगतान विधि: | T/T,Western Union |
| आपूर्ति क्षमता: | 10000 pcs one year |
★ Product Application
The CO2 laser engraving and cutting machine is widely used in both industrial settings and everyday life. It is capable of cutting and engraving a variety of non-metal materials, including acrylic, wood, plywood, MDF, leather, rubber, and glass.
★ Product Features
Mini Laser Engraving and Cutting Machine Mobile Screen Protector Gold Tempered Glass Mark 3020 Small Business Leather White Blue
The machine operates with the CorelDRAW control system, supporting multiple languages. Users can import stamp designs into the software, set the appropriate parameters, and perform cutting and engraving. It efficiently handles text in various languages, logos, QR codes, barcodes, patterns, and more.
★ Technical Parameters
| 1 | Model | XH-3020 CO2 laser engraving machine | |||
| 2 | Cutting Working Area | 300*200mm | |||
| 3 | Power | 40W/50W(optional) | |||
| 4 | Laser Source Brand | Chaoya | |||
| 5 | Control System | M2 Shenzhouyike | |||
| 6 | Engraving speed | ≤3000mm/min | |||
| 7 | Engraving thickness | 1----15mm(depend on the materials) | |||
| 8 | Locating Precision | ≤0.01mm | |||
| 9 | Support Format | BMP,PLT,AI,CDR,DXF,etc | |||
| 10 | Working material | Non-metallic material | |||
| 11 | Cooling Method | water-cooling | |||
| 12 | Up and down work table | 0--400mm electric lift(Optional auto focus) | |||
| 13 | Workbench | honeycomb table or blade table(optional) | |||
| 14 | Gross weight | 26KG | |||
| 15 | Machine Warranty | 2 years warranty | |||
★More Machine Details

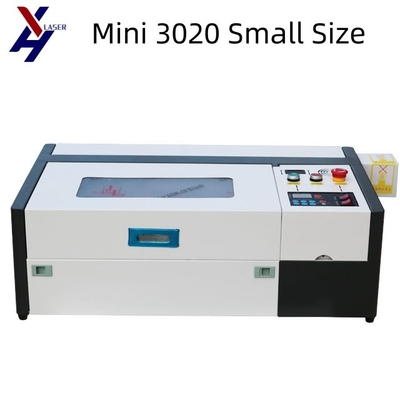

★ 3020 CO2 laser engraving machine Real Machine Display
★ Sample Show
|
|
